Concept and Types of Keys

599 단어·3 분·원문(.md)

Key #

  • In a database, it refers to an attribute that serves as a criterion for finding tuples that satisfy a condition or for sorting them in order.

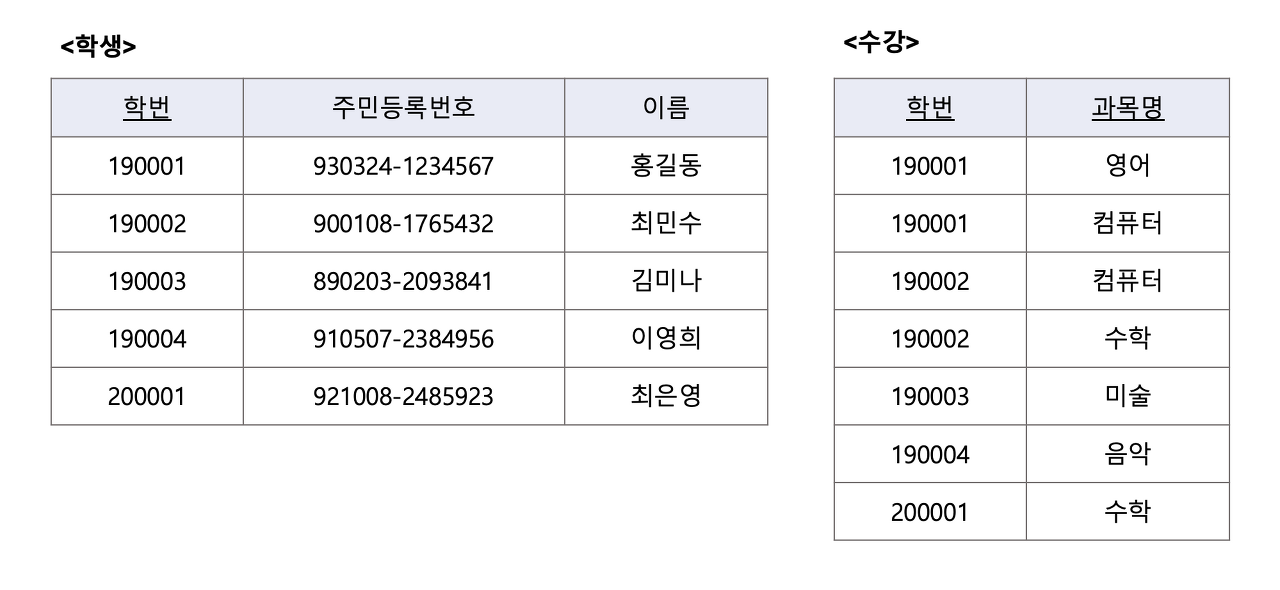

table

Super Key #

  • A key composed of a set of attributes within a relation. Among all tuples constituting the relation, no two tuples will have the same value for the set of attributes that make up the super key.
  • It satisfies uniqueness for all tuples constituting the relation but does not satisfy minimality.

e.g., In a relation, student ID, social security number, (student ID, social security number), (student ID, social security number, name), etc., are super keys.

Candidate Key #

  • A subset of attributes among those constituting a relation, used to uniquely identify tuples.
  • Satisfies both uniqueness and minimality.

e.g.,

  1. In the <Student> relation, student ID or social security number satisfy uniqueness and minimality, thus becoming candidate keys.
  2. In the <Enrollment> relation, the combination of student ID and course name satisfies uniqueness and minimality, so the combination (student ID, course name) becomes a candidate key.

A key formed by combining two or more fields, such as student ID and course name, is called a composite key.

Primary Key #

  • A key specially selected from candidate keys, which cannot have duplicate values.
  • It possesses the properties of a candidate key, meaning it has uniqueness and minimality, and is an essential key for identifying tuples.
  • Cannot have NULL values. That is, attributes set as primary keys in a tuple must not contain NULL values.

e.g.,

  1. In the <Student> relation, either student ID or social security number (which are candidate keys) can be selected as the primary key. In the <Enrollment> relation, student ID and course name must be combined to set a primary key.
  2. If student ID is defined as the primary key in the <Student> relation, the already entered student ID 190001 cannot be entered as the student ID attribute value for another tuple.

Alternate Key #

  • Refers to the remaining candidate keys after a primary key has been selected from the set of candidate keys.

e.g.,

  1. If student ID is set as the primary key in the <Student> relation, then social security number becomes an alternate key.

Foreign Key #

  • Refers to an attribute or set of attributes that references the primary key of another relation.
  • Used to express relationships between relations.
  • When attribute A in one relation and primary key B in a referenced relation are defined over the same domain, attribute A is called a foreign key.
  • Has the same key attributes as the primary key of the referenced relation. e.g.,
  1. The student ID in the <Enrollment> relation references the student ID, which is the primary key of the <Student> relation. Therefore, the student ID in the <Enrollment> relation becomes a foreign key.
  2. You cannot enter a value into the student ID attribute of the <Enrollment> relation that does not exist in the student ID attribute of the <Student> relation.
  3. The <Student> relation and the <Enrollment> relation have a relationship established based on student ID.

Uniqueness #

  • A single key value must be able to uniquely identify only one tuple.

Minimality #

  • If one attribute constituting the key is removed, it should no longer be able to uniquely identify, meaning it must be composed of the minimum necessary attributes. However, just because a student ID or social security number satisfies minimality does not mean it is not a super key. A super key only needs to uniquely distinguish tuples, regardless of minimality.
  • Candidate keys are those super keys that satisfy both uniqueness and minimality.
